📋 Basic Info.
Model NO.
Endotracheal Tube
Sterilization
Ethylene Oxide (EO)
Medical Classification
Class II
Certification
CE, ISO13485, FDA
Specification
2.0-10.0 ID (mm)
Capacity
500,000 PCS Per Month
Usage
Hospital Application

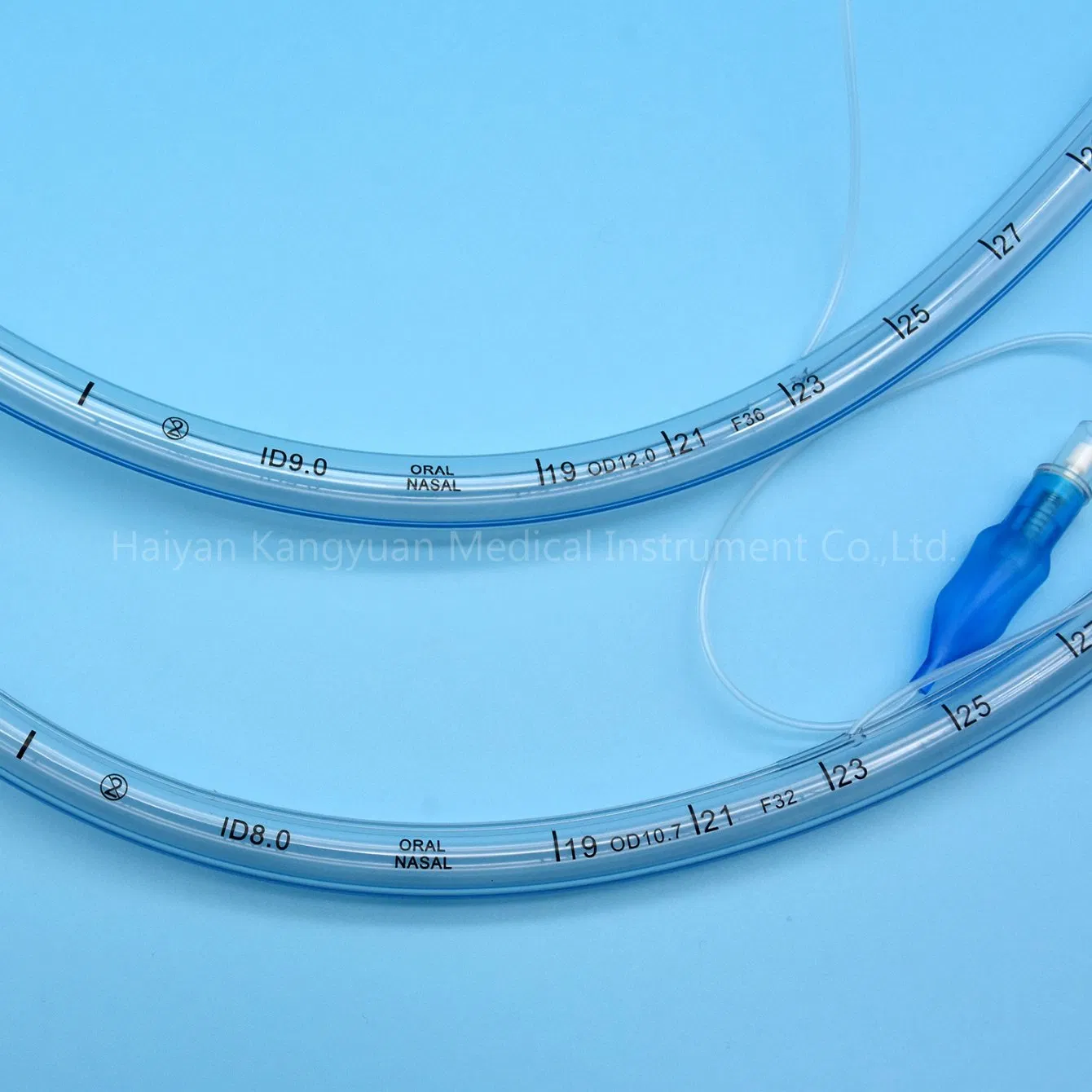

🔍 Product Description

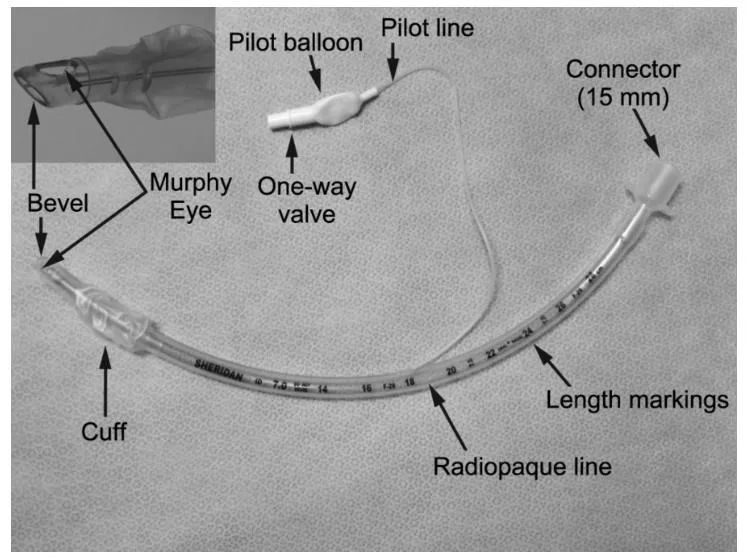

- ✔ Made of non-toxic medical grade PVC
- ✔ Transparent, clear and smooth design
- ✔ High volume low pressure cuff
- ✔ Bevelled left-facing tip
- ✔ Murphy eye for safety
- ✔ Pilot balloon for tactile confirmation
- ✔ Spring-loaded valve with Luer lock
- ✔ Standard 15 mm connector
- ✔ Full-length radio-opaque line
- ✔ Anatomical Magill curve
- ✔ ID, OD and length printed on tube
- ✔ Sterile and single-use only
⭐ Product Benefits
1Easy Intubation: The bevelled tip passes easier through the vocal chords, while the left-facing orientation allows a better field of view.
2Safety Design: The Murphy eye provides an alternate gas passage way to ensure patient safety.
3Visual Confirmation: A radio-opaque line helps confirm adequate tube position via chest X-ray.
4Universal Connection: Standard 15mm connector allows attachment to various breathing systems and anesthetic circuits.
5Tracheal Protection: The high volume low pressure cuff applies lower pressure against the tracheal wall, reducing the risk of ischemia and necrosis.
6Anatomical Fit: Magill curve follows the anatomy of the upper airway for easier insertion.
💡 What is an Endotracheal Tube?
An endotracheal tube is a flexible tube placed through the mouth into the trachea (windpipe) to help a patient breathe. It is connected to a ventilator which delivers oxygen to the lungs. It is considered the "gold standard" for securing and protecting the airway during surgery, trauma, or serious illness.
📦 Packing & Logistics
Packing Details
1 pc/blister bag, 10 pcs/box, 200 pcs/carton
Carton Size
61 * 36 * 46 cm

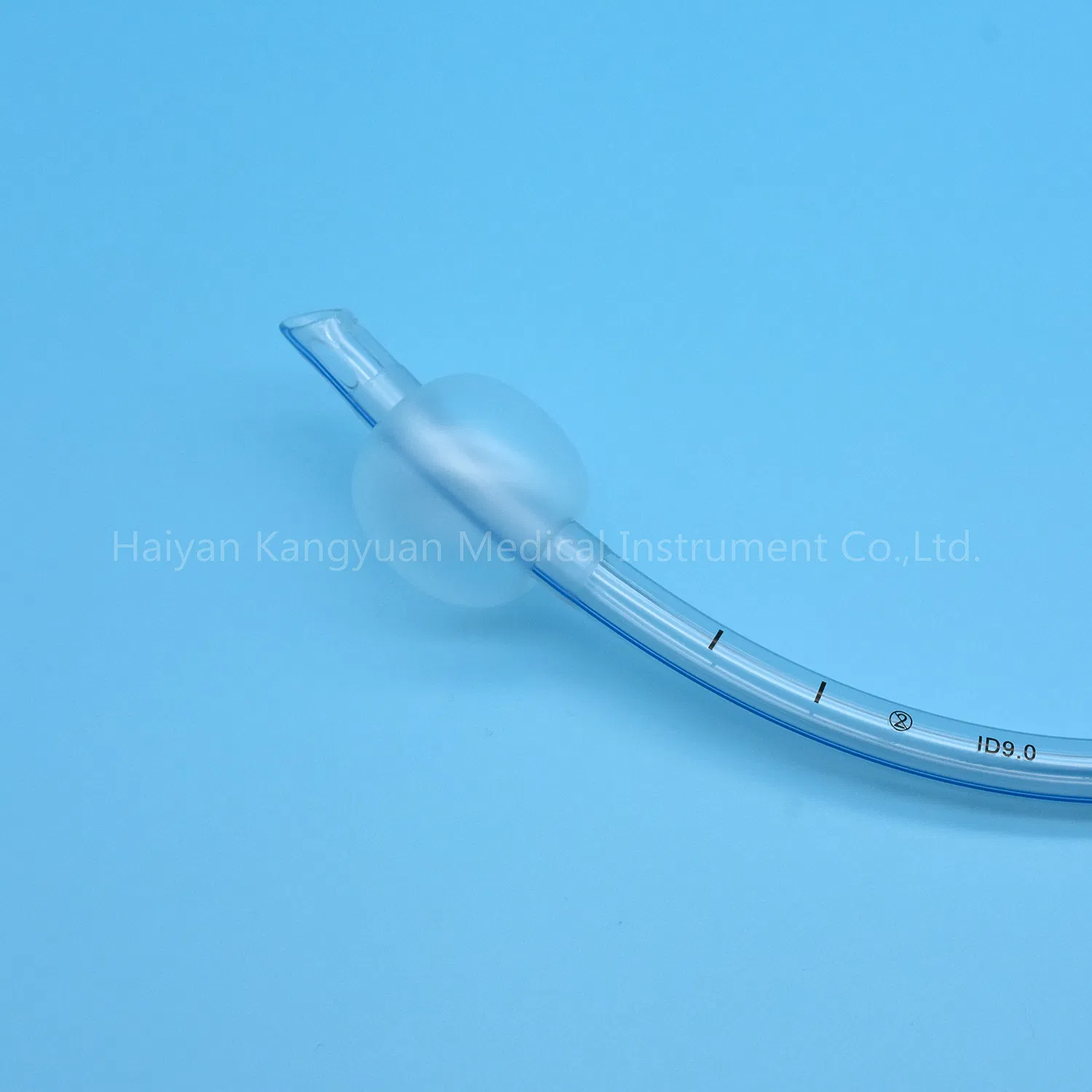

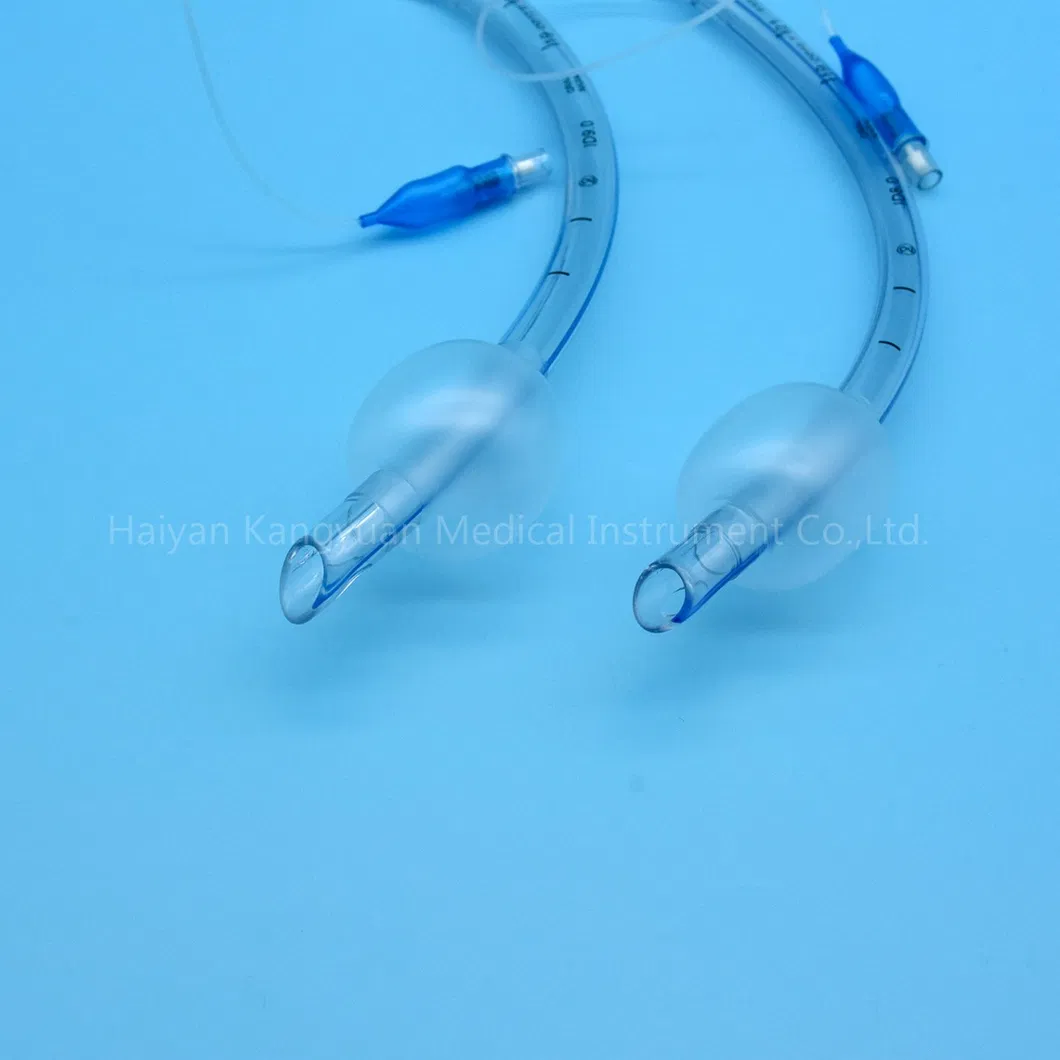

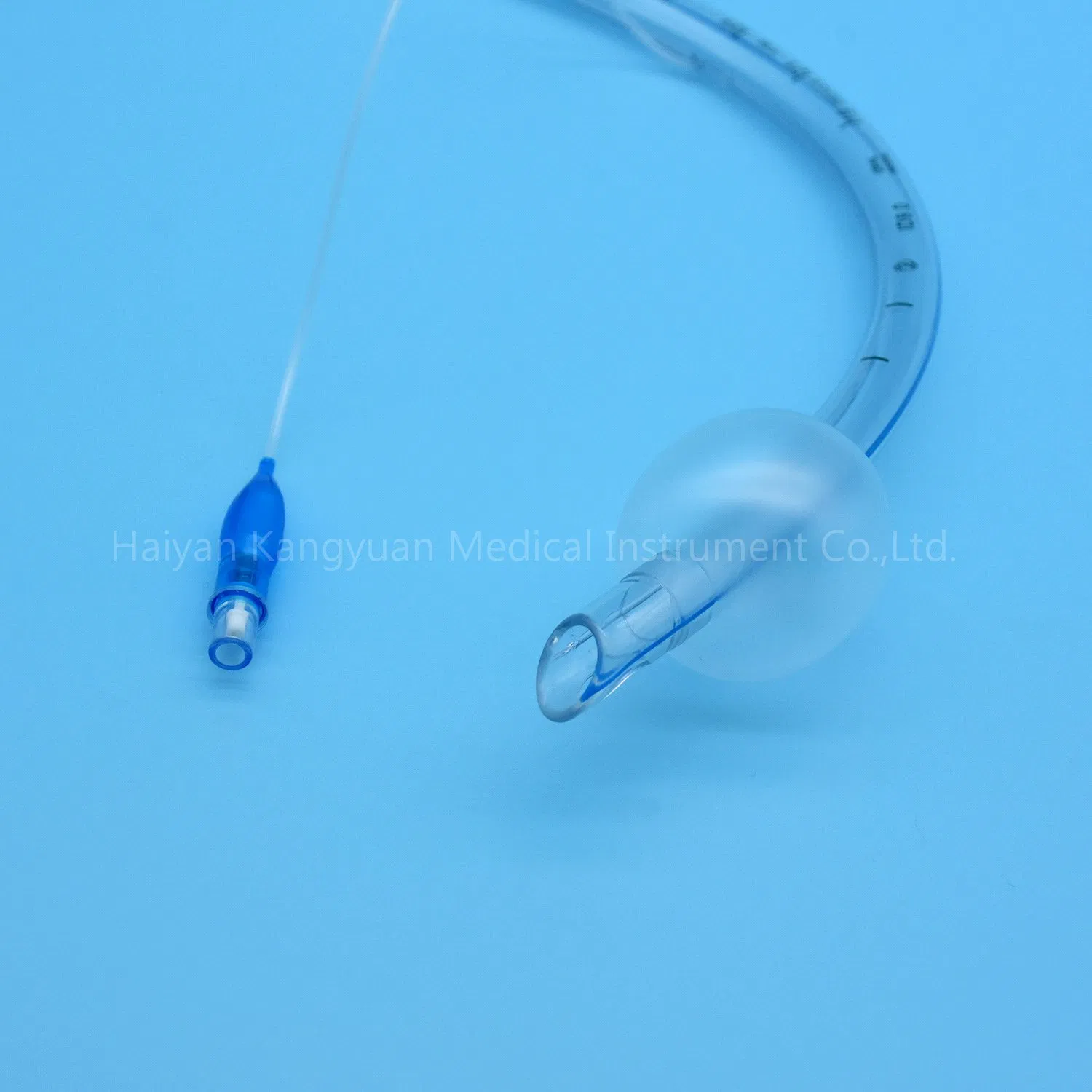

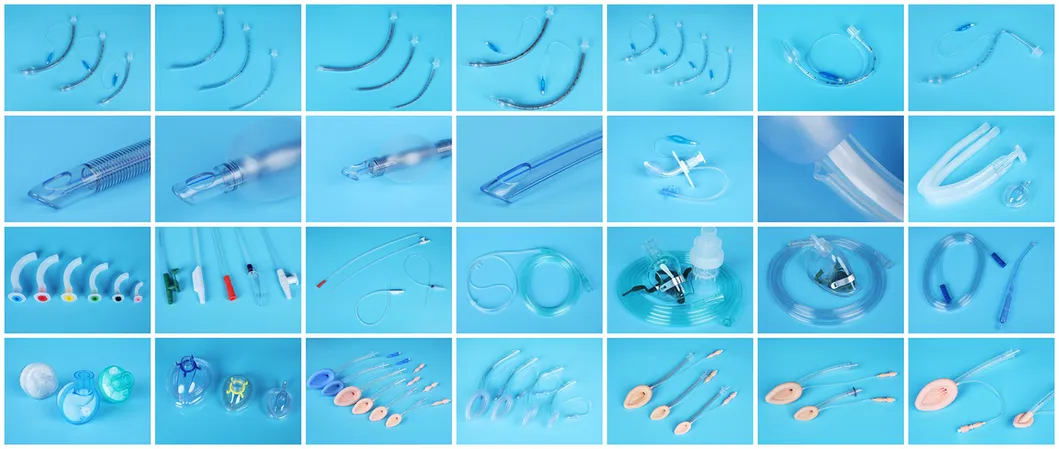

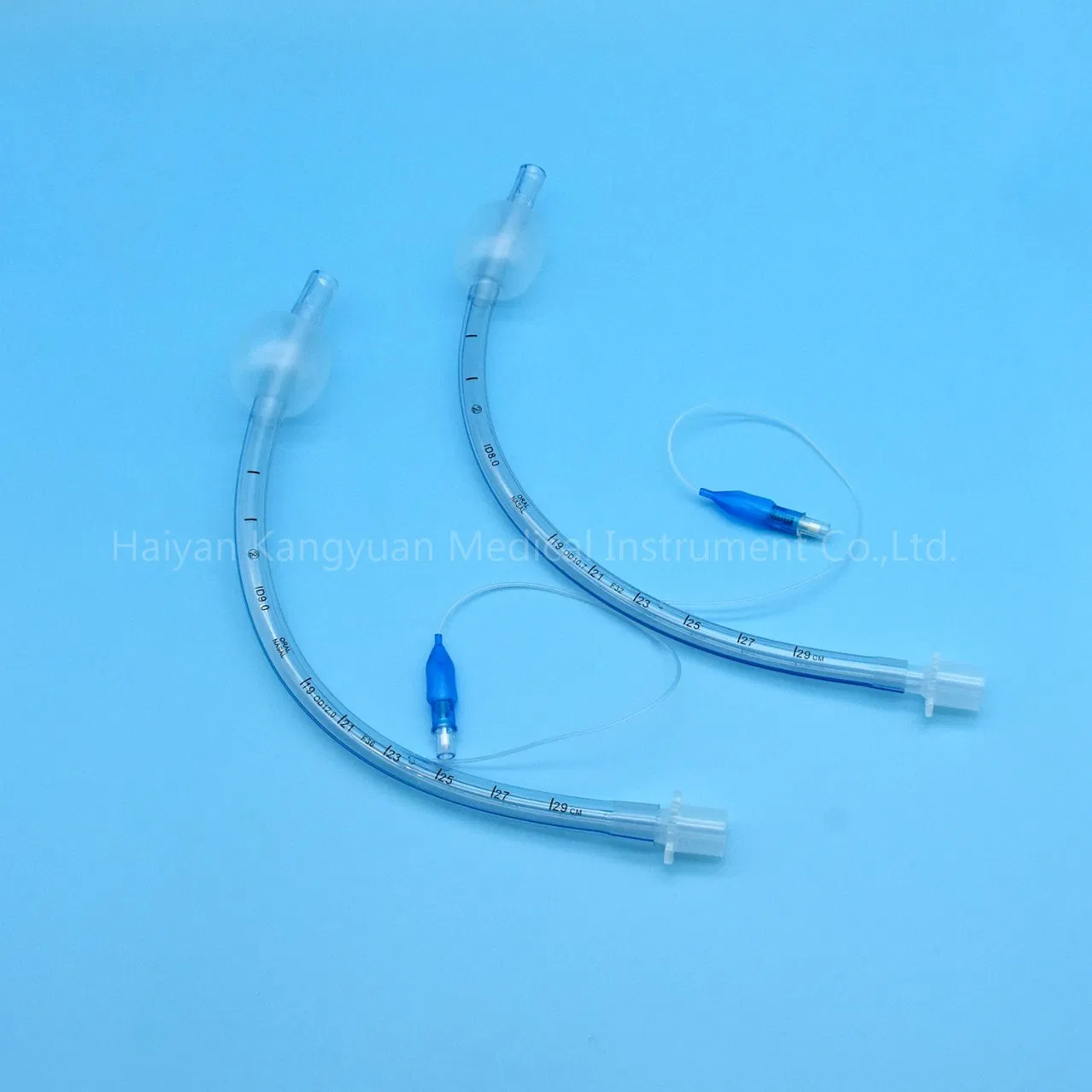

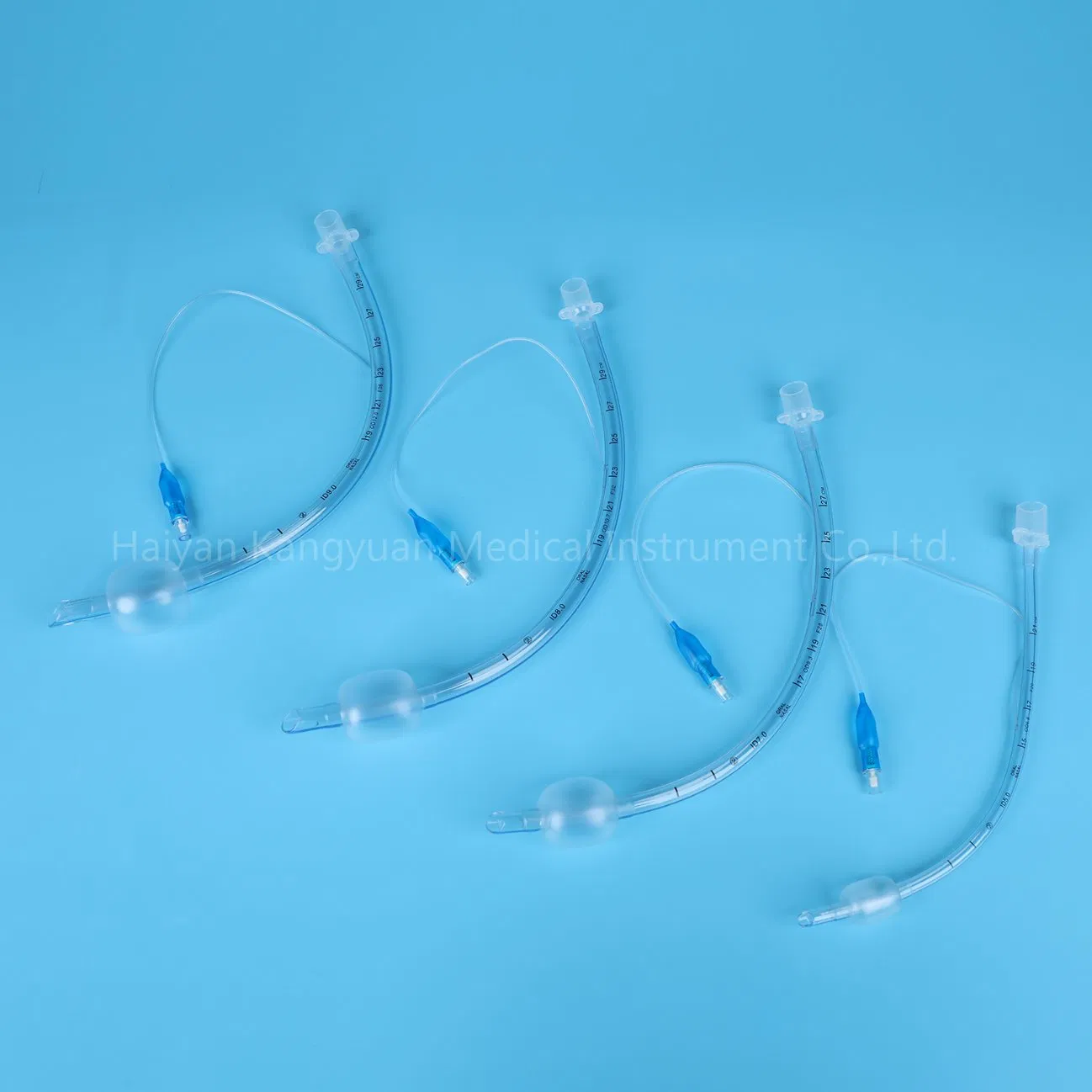

📸 Product Gallery
❓ Frequently Asked Questions
Q1: What materials are used to manufacture the endotracheal tube?
The tube is made from non-toxic medical-grade PVC, ensuring it is transparent, smooth, and safe for clinical use.
Q2: Why is the high volume low pressure cuff important?
It applies lower pressure against the tracheal wall, which significantly reduces the risk of tracheal wall ischemia and tissue necrosis during short or long-term intubation.
Q3: How is the placement of the tube confirmed during surgery?
The tube features a radio-opaque line extending to the tip, allowing for easy and accurate visual confirmation of the tube's position via a chest X-ray.
Q4: What is the purpose of the Murphy Eye?
The Murphy eye serves as an alternate gas passage way, ensuring that ventilation can continue even if the primary tip of the tube becomes obstructed.
Q5: Can this product be reused after sterilization?

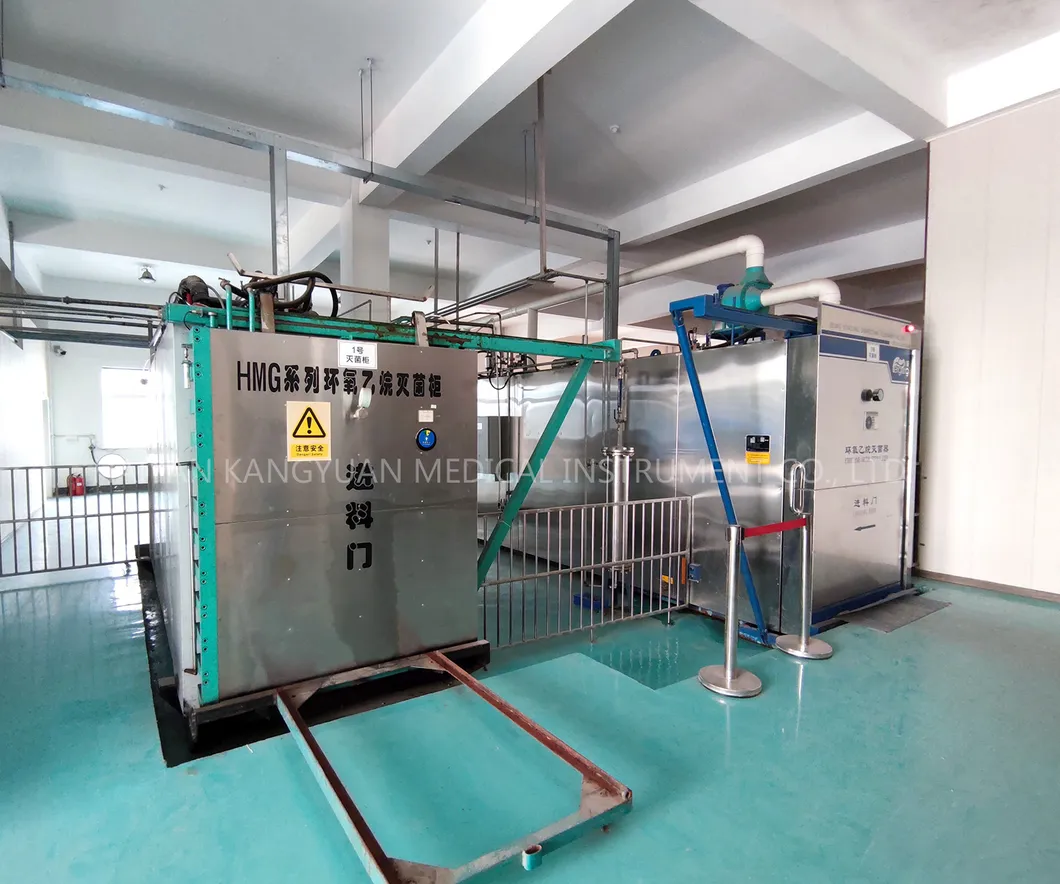

No, these endotracheal tubes are designed for single-use only. They are supplied sterile (Ethylene Oxide sterilization) to prevent cross-contamination.
Q6: What sizes are available for this endotracheal tube?
We offer a full range of sizes from 2.0mm to 10.0mm in Internal Diameter (ID) to suit different patient needs.
