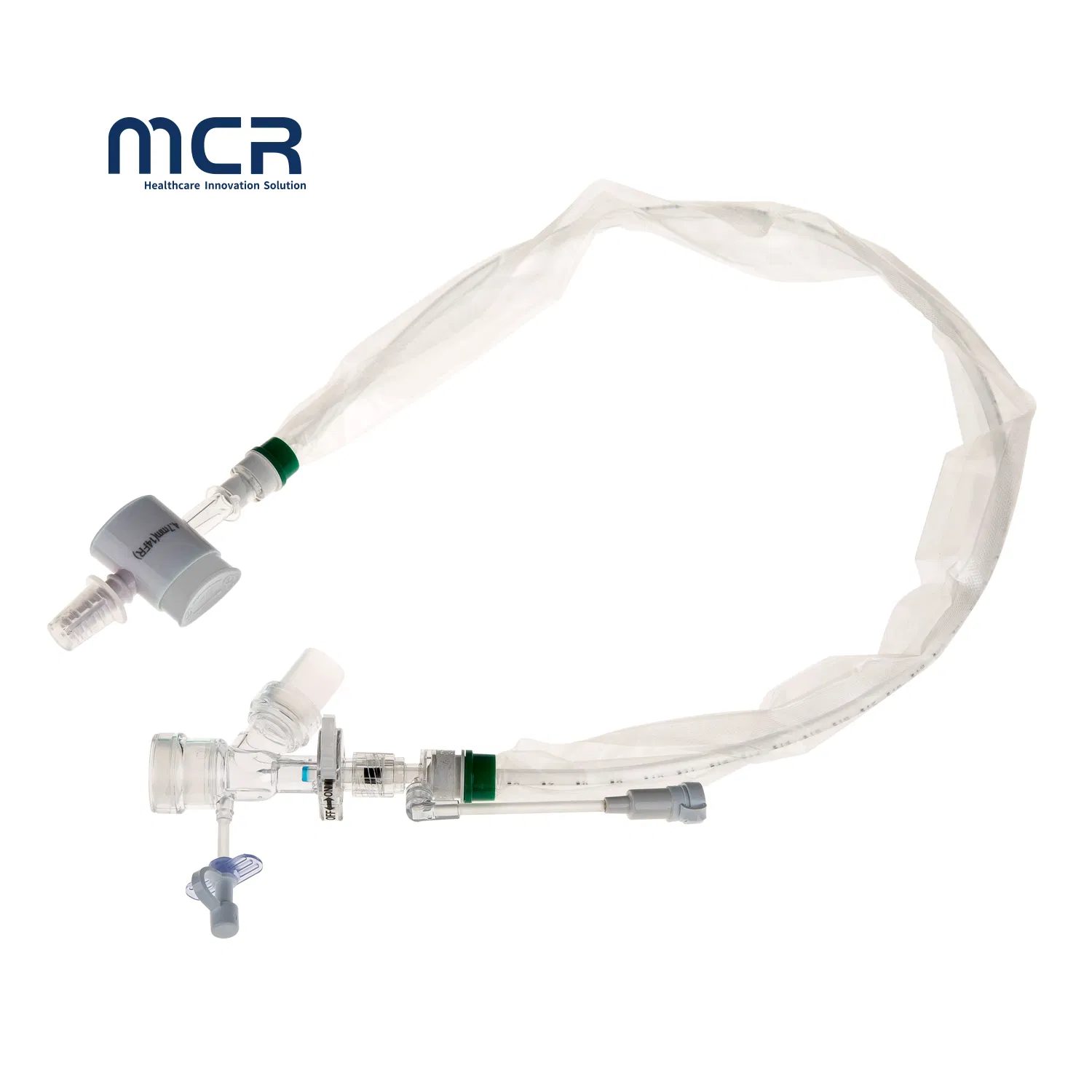

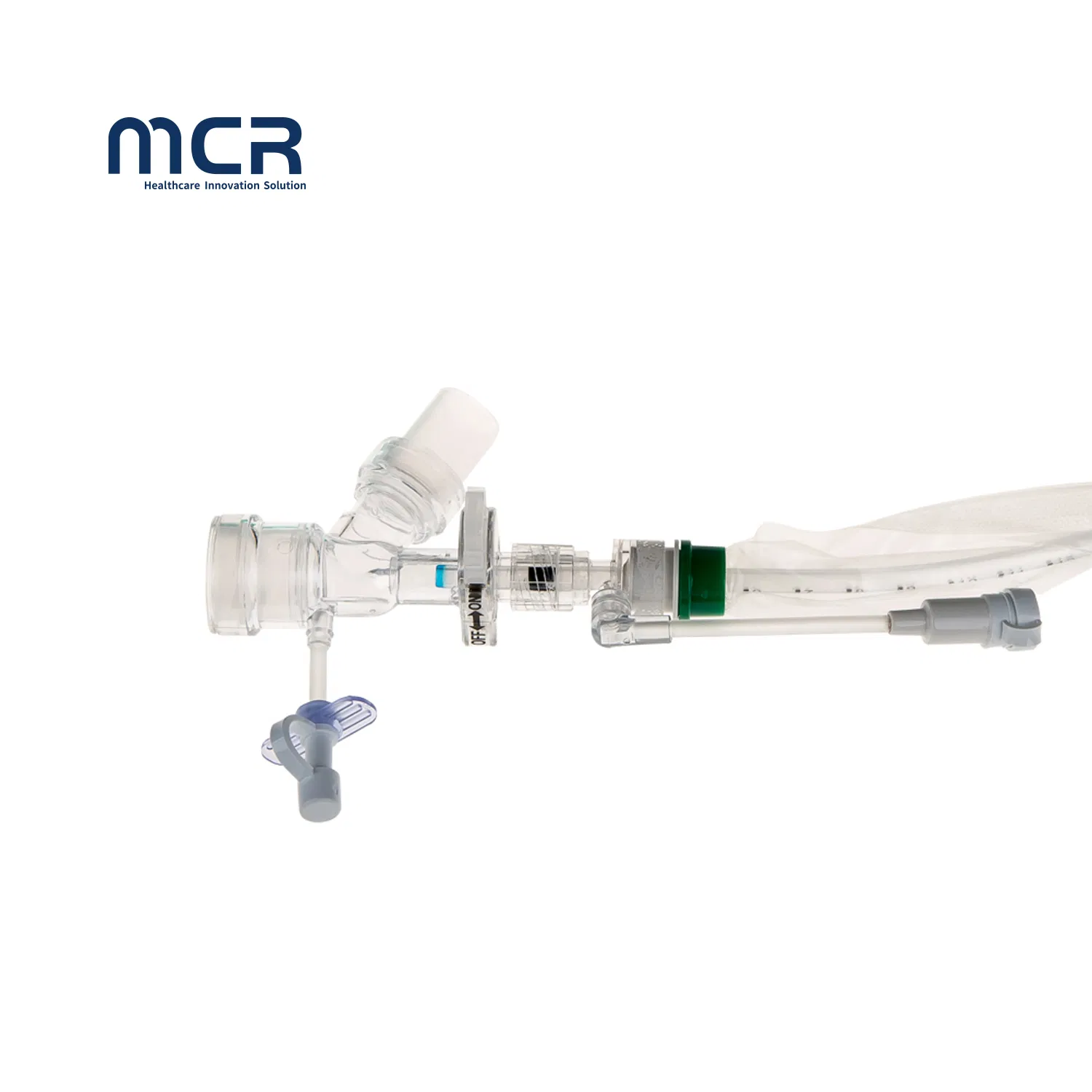

Medical Equipment Closed Suction Catheter (Y-Piece) 72hours for Adult Endotracheal/ Tracheostomy Catheter
Medical Equipment Closed Suction Catheter (Y-Piece) 72hours for Adult Endotracheal/ Tracheostomy Catheter
Medical Equipment Closed Suction Catheter (Y-Piece) 72hours for Adult Endotracheal/ Tracheostomy Catheter
Medical Equipment Closed Suction Catheter (Y-Piece) 72hours for Adult Endotracheal/ Tracheostomy Catheter
Medical Equipment Closed Suction Catheter (Y-Piece) 72hours for Adult Endotracheal/ Tracheostomy Catheter
1 / 5
Medical Equipment Closed Suction Catheter (Y-Piece) 72hours for Adult Endotracheal/ Tracheostomy Catheter
Medical Equipment Closed Suction Catheter (Y-Piece) 72hours for Adult Endotracheal/ Tracheostomy Catheter
Medical Equipment Closed Suction Catheter (Y-Piece) 72hours for Adult Endotracheal/ Tracheostomy Catheter
Medical Equipment Closed Suction Catheter (Y-Piece) 72hours for Adult Endotracheal/ Tracheostomy Catheter
Medical Equipment Closed Suction Catheter (Y-Piece) 72hours for Adult Endotracheal/ Tracheostomy Catheter

Medical Equipment Closed Suction Catheter (Y-Piece) 72hours for Adult Endotracheal/ Tracheostomy Catheter

Still deciding? Get samples of $ !
Request Sample
Send Inquiry

Product Description

Basic Information

Model NO.
MC-0724
Sterilization
Ethylene Oxide (EO)
Guarantee Period
5 Years
Group
Adult
Logo Printing
Available / OEM
Sample
Free for 2PCS
Relative Type
24h/72h/Child/Adult
Product Name
Closed Suction Catheter
Certificates
ISO13485 / FDA
Classification
Class II
Package
1PCS/Pouch, 10 Pouches/Box
Delivery Time
30 Days
Color
Transparent
Specification
10fr/12fr/14fr/16fr
Origin
China
HS Code
901839

Product Description

Closed Suction Catheter (Y-Piece) 72 hours for Adult, Push Switch & Luer Lock Type

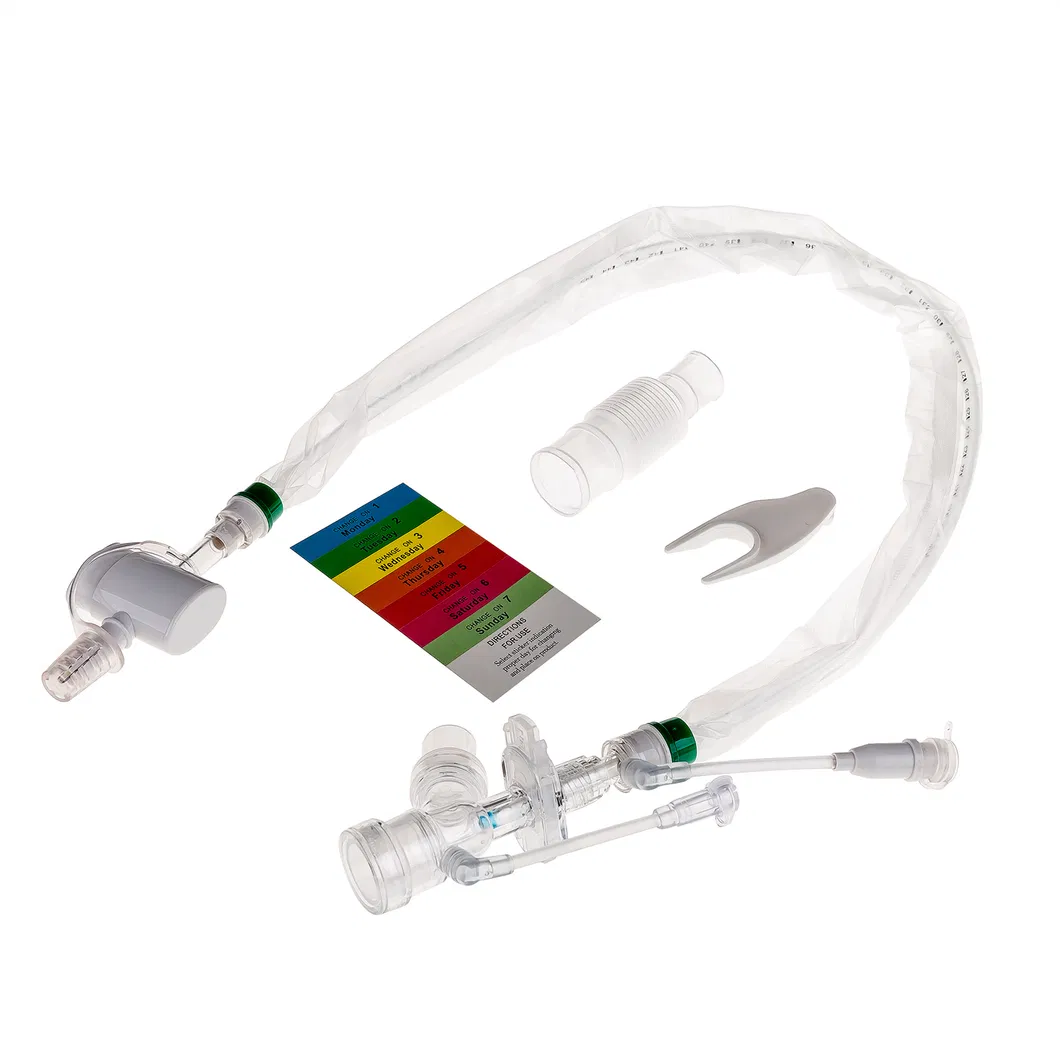

Closed Suction Catheter
✓
Protective Sleeve: Designed to isolate germs inside and help caregivers avoid cross-infection.
✓
Simultaneous Ventilation: Allows patients' comfort of suctioning without stopping the air ventilation.
✓
Push Switch & Luer Lock: Keeps breathing while isolating the turbulent cleaning chamber to prevent spray back, reducing VAP risk.

Key Features

Continuous Breathing Simultaneous ventilation for patient stability.
Soft Blue Suction Tip Reduces damage to the patient while suctioning; easier for irrigational cleaning.
Double Swivel Connector 15mm connector of Double Swivel for flexibility.
Disconnecting Wedge Equipped with both disconnecting and clipping functions.

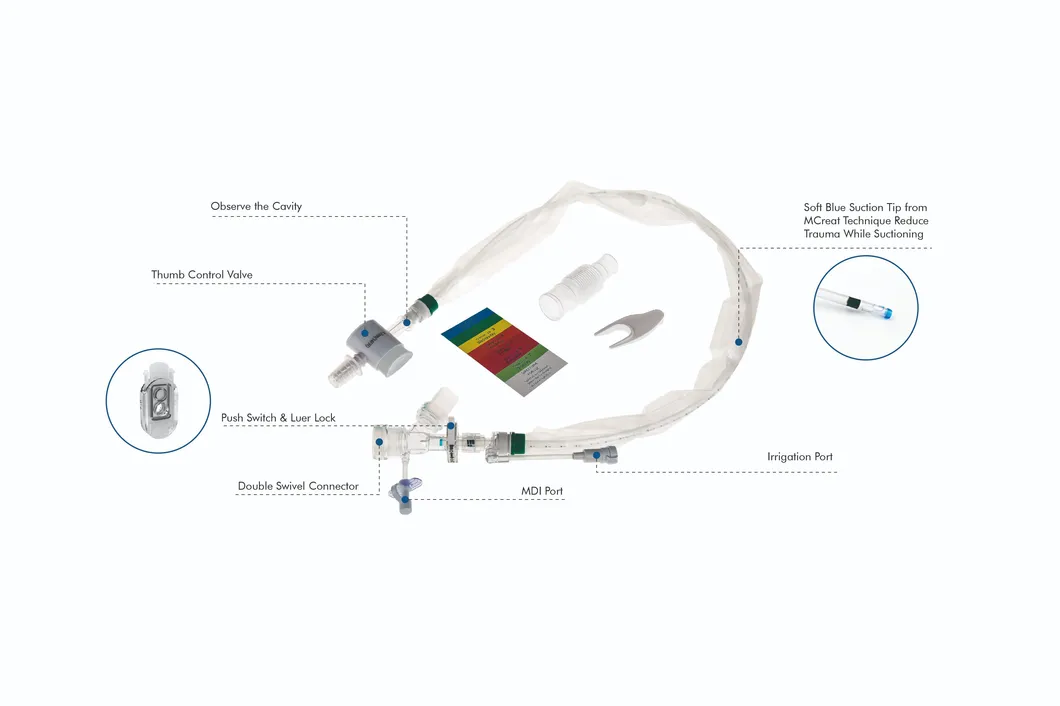

Product Features

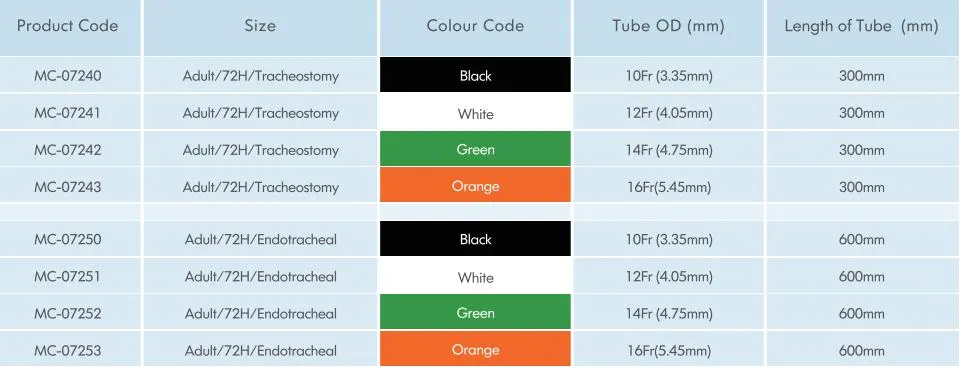

Product Data Sheet

Closed Suction Catheter Standard Form

Data Sheet

*We can produce the closed suction catheter according to customers' requirements.

Instructions for Use

Set up Procedure
  1. Inspect the product before use. Do not use if package is damaged.
  2. Connect the Endotracheal/Tracheostomy Tube to the Revolvable adapter.
  3. Connect ventilator tube to the Revolvable Ventilator Connector.
  4. Attach the date label to the color ring.
  5. Ensure MDI Port and Irrigation Port caps are closed.
  6. Ensure the on-off valve is in the open position before suctioning.
Suctioning Procedure
  1. Feed the suction catheter into the tube to the required depth using the markers.
  2. Depress the vacuum control valve to begin suctioning.
  3. Remove the suction catheter until the protective sleeve is straight.
  4. Repeat as necessary.

Product Gallery

Detail 1
Detail 2
Detail 3
Detail 4
Detail 5
Detail 6
Full View
Technical Drawing

Frequently Asked Questions

Q: What is the main benefit of a 72-hour closed suction catheter?
A: It allows for continuous ventilation during suctioning and maintains a closed system for 72 hours, significantly reducing the risk of cross-infection and Ventilator-Associated Pneumonia (VAP).
Q: Is this product compatible with tracheostomy tubes?
A: Yes, it is specifically designed for use with both endotracheal tubes and tracheostomy tubes.
Q: How does the soft blue tip help the patient?
A: The soft blue tip is designed to minimize mucosal damage and trauma to the airway during the suctioning process.
Q: What sizes are available for this catheter?
A: We offer standard specifications including 10fr, 12fr, 14fr, and 16fr to suit different patient needs.
Q: Can I get samples before placing a bulk order?
A: Yes, we provide up to 2 pieces as free samples for quality evaluation and testing.
Q: What certifications does the product have?
A: Our closed suction catheters are manufactured under strict quality control and hold ISO13485 and FDA certifications.
