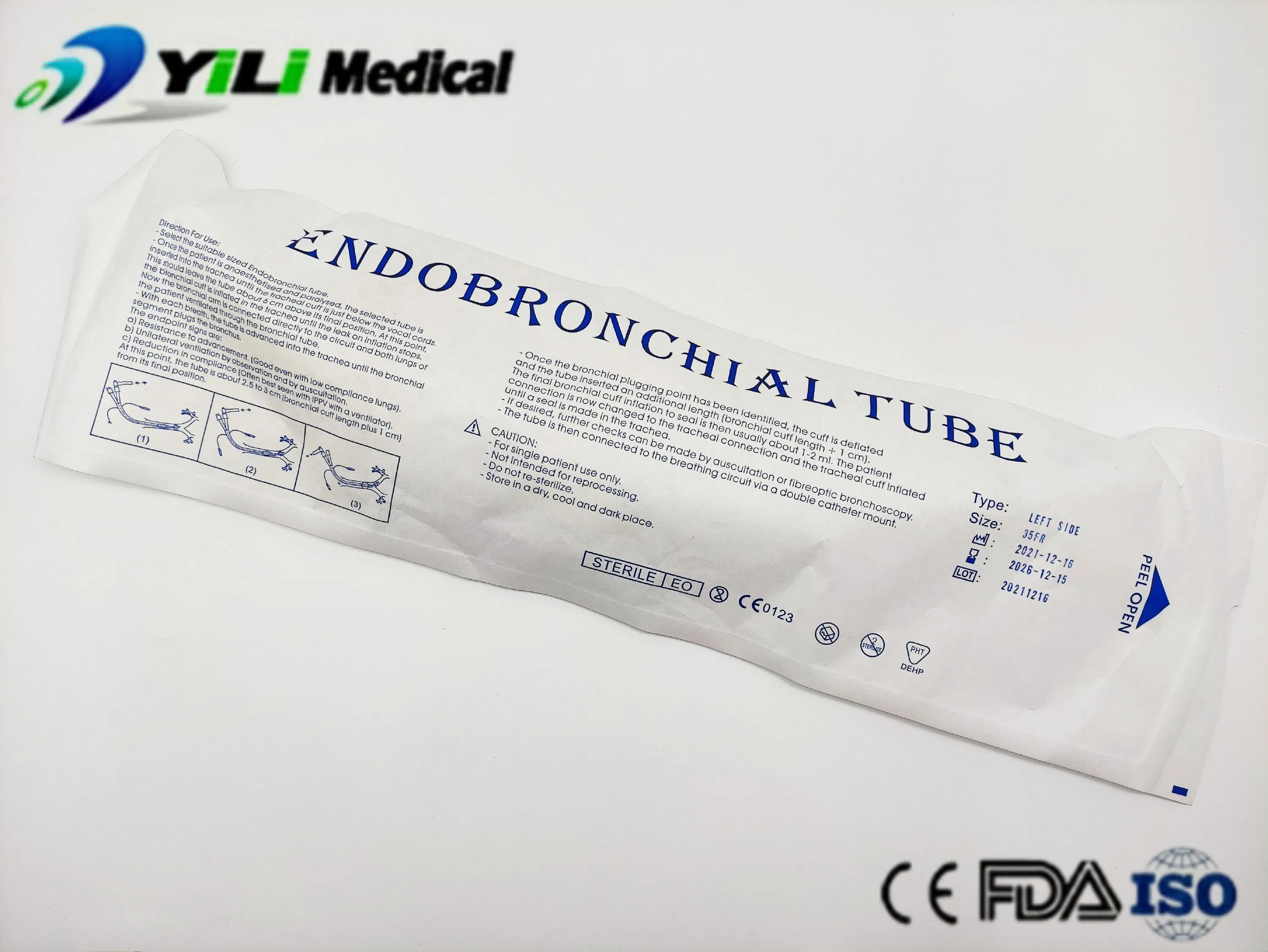

Respiratory Anesthesia Medical Disposables Double Lumen Endotracheal Tube

Still deciding? Get samples of $ !
Request Sample

Product Description

📋 Basic Information
Model NO.size 26Fr-42Fr (Left or Right)
SterilizationEthylene Oxide Sterilization
Quality GuaranteeFive Years
GroupAdult
Logo PrintingWith Logo Printing
UsageSingle-Use
ColorTransparent
CertificationCE & ISO13485
NameDouble Lumen Endotrachial Tube
KeywordEndotracheal Tube
Transport PackagePE + Paper Pouch Packing
HS Code9018390000
Production Capacity300000 Piece/Pieces Per Month
🔍 Product Description
High Quality Disposable PVC Double Lumen Endotrachial Tube with Stylet

The Double Lumen Endotrachial Tube (DLT) is a specialized endotracheal tube used in tracheal intubation during thoracic surgery to achieve selective one-sided ventilation of either the right or the left lung. It is essential for establishing an artificial airway in clinical chest operations or for critical patients requiring single-lung ventilation.

Main Components:

Constructed from medical-grade PVC and stainless steel. The set includes bronchial intubation (capsule, double-lumen catheter, inflatable tube, indicating balloon, one-way valve, joint, stylet), suction catheter, universal joint, and Y-type three-way connector. The product is provided sterile.

Key Features:
1. Applications: Used for single-lung aerating in thorax operations or for gravity patients.
2. Low-pressure tube and bronchial cuff design helps reduce mucosal lesions.
3. Color-coded pilot balloon and bronchial cuff for easy position judgment.
4. Includes 3 phlegm suction catheters (2 graduated for exact positioning).
5. Swivel connector configuration for flexible ventilator positioning.
6. Available Specs: Fr32, Fr35, Fr37, Fr39, Fr41 (Left and Right).
7. Blue bronchial capsule assists bronchoscopy in determining distal catheter position.
8. Opaque X-ray marks at the tip and above the capsule for placement verification.
MaterialPVC and Silicone materials available
Size Range28, 32, 35, 37, 39 and 41 French (Left/Right)
Balloon TypeUpgrade PU Micro-thin Balloon
DesignSmooth Tip, Heating smooth finish, High-quality material
ApplicationOne-lung ventilation (pulmonary isolation)
PackingComplete set with Y Connector, Suction Tube, and Stylet
📸 Detailed Photos

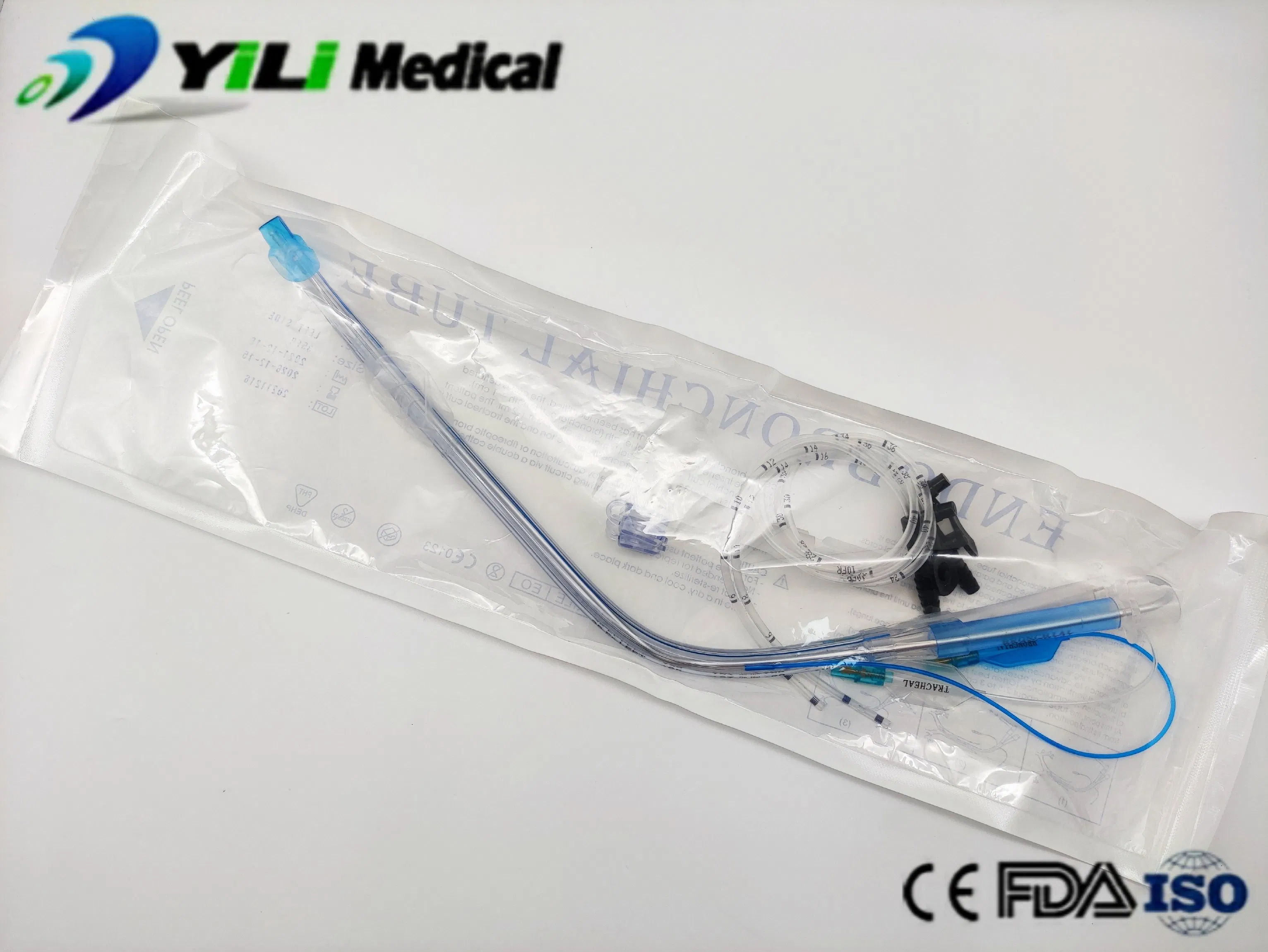

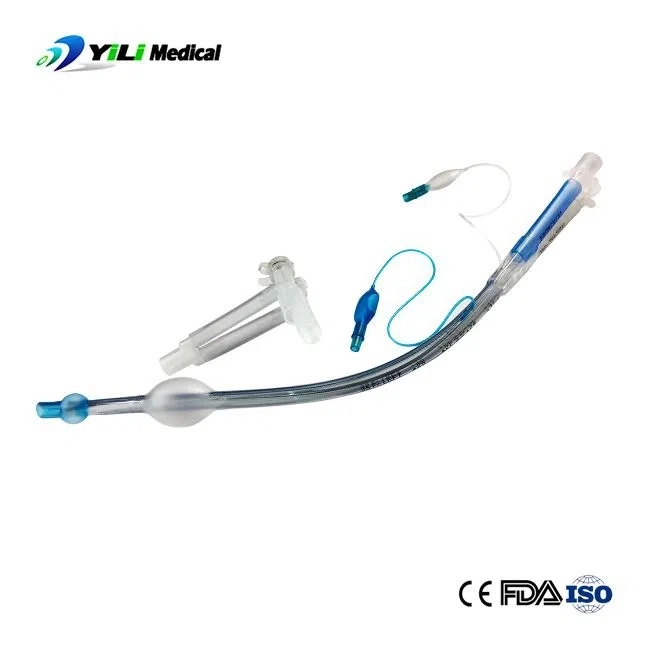

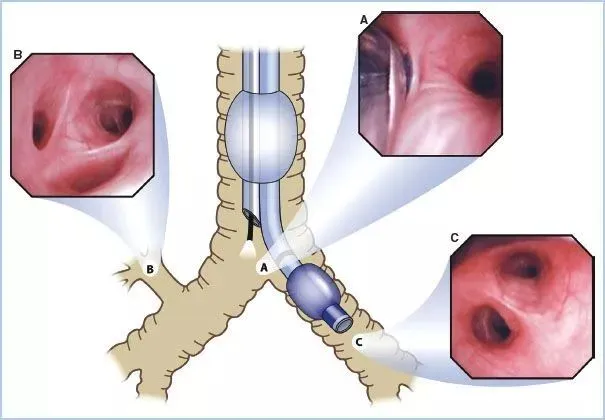

Double Lumen Endotracheal Tube Overview

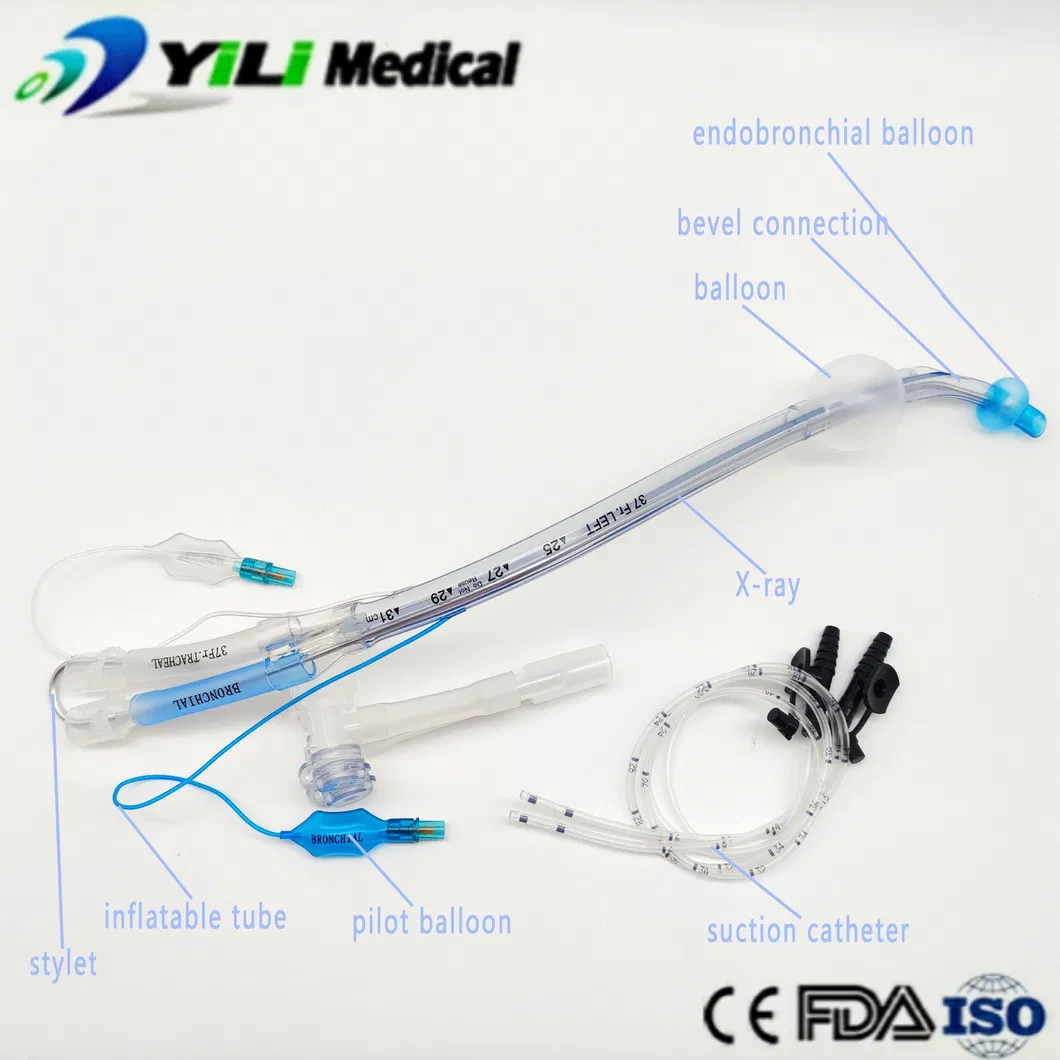

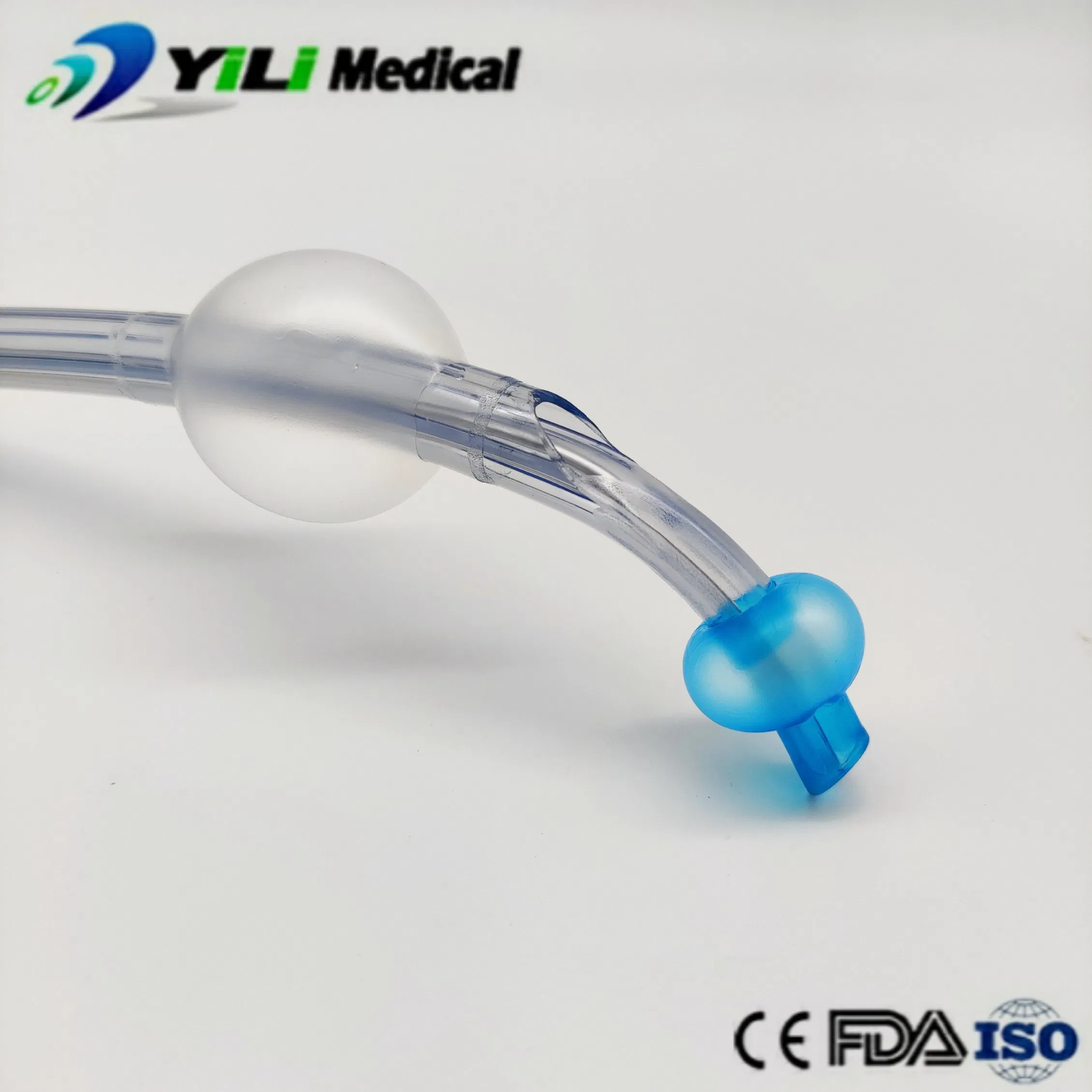

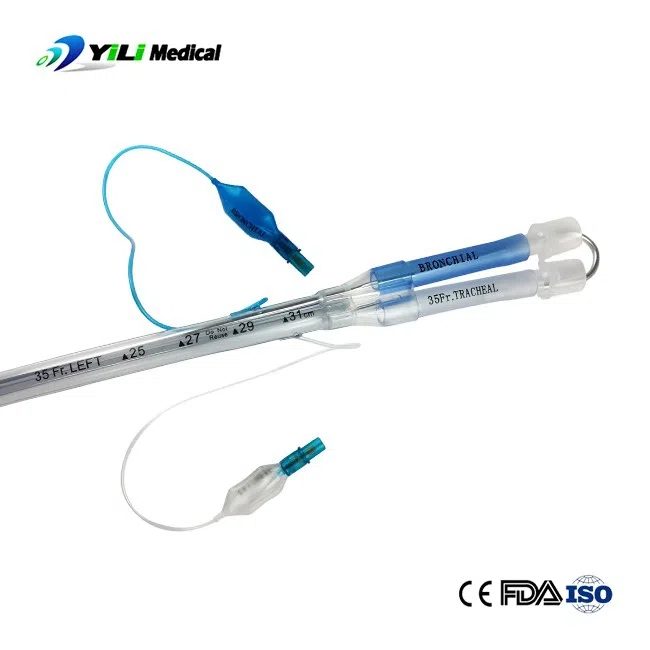

Double Lumen Endotracheal Tube Detail
🛠 Usage Instructions
1. Carefully remove the product from the sterilization bag.
2. Firmly connect the tube to the conical connector to avoid rupture.
3. Check for air leaks in the sleeve capsule and indicating balloon before use.
4. Insert the tube into the patient's trachea.
5. Inflate the main trachea and bronchial cuffs using a needleless syringe until fixed.
6. Connect to the anesthesia machine or ventilator.

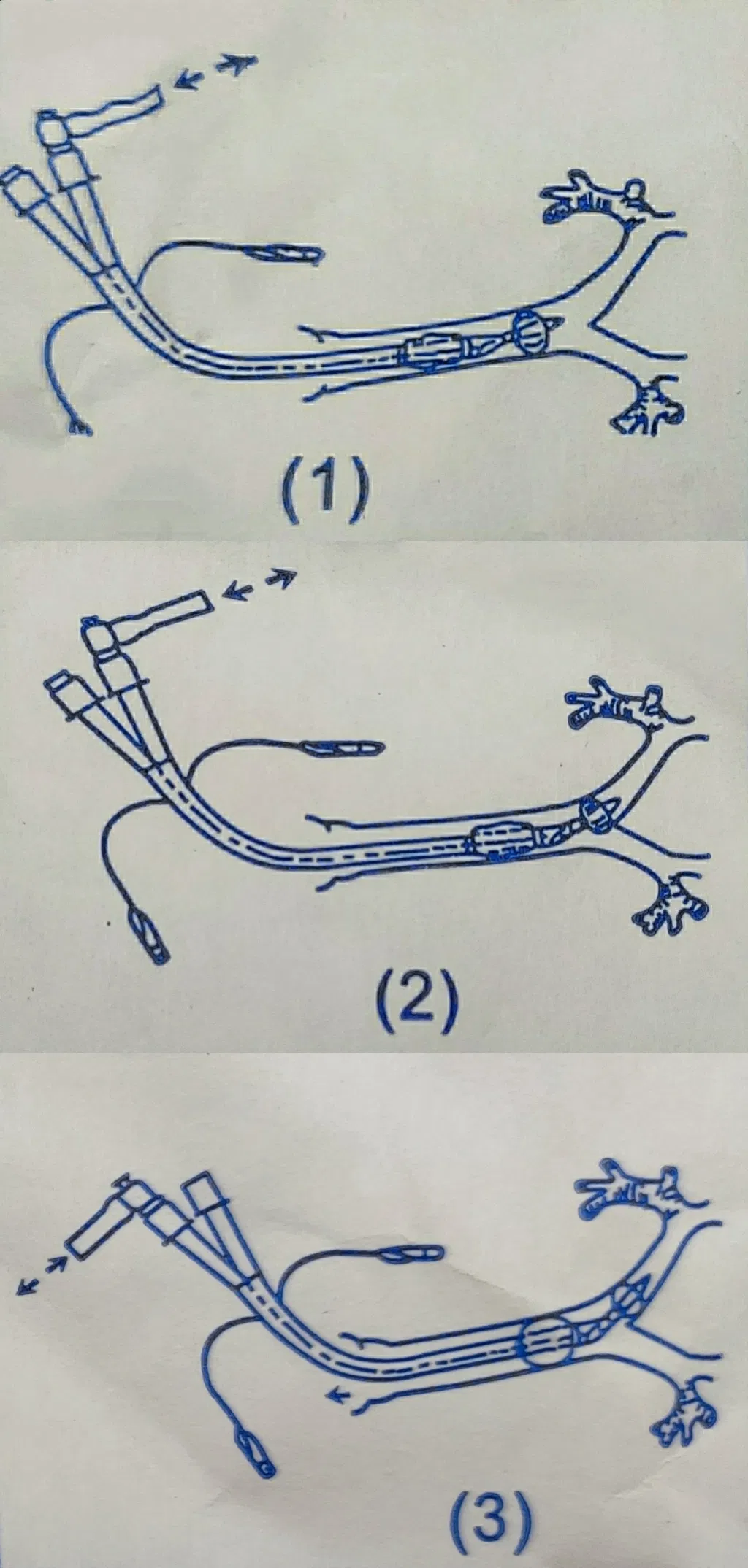

Usage Diagram 1
Usage Diagram 2

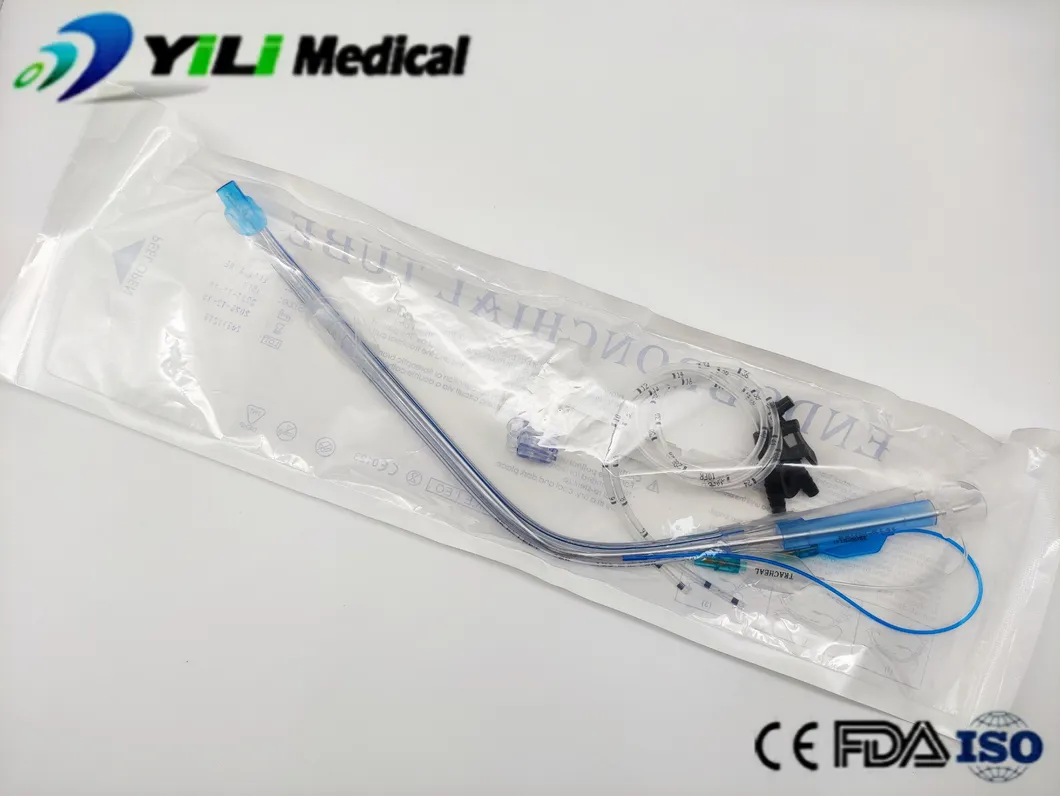

Usage Diagram 3
Usage Diagram 4
🏢 Professional Manufacturer

We are a professional manufacturer and supplier of medical consumables with over 8 years of expertise. Our product range has diversified to meet global market demands, focusing on respiratory anesthesia, urinary, and injection infusion products. Our factories operate dedicated production lines to ensure high-quality standards and one-stop service for our clients.

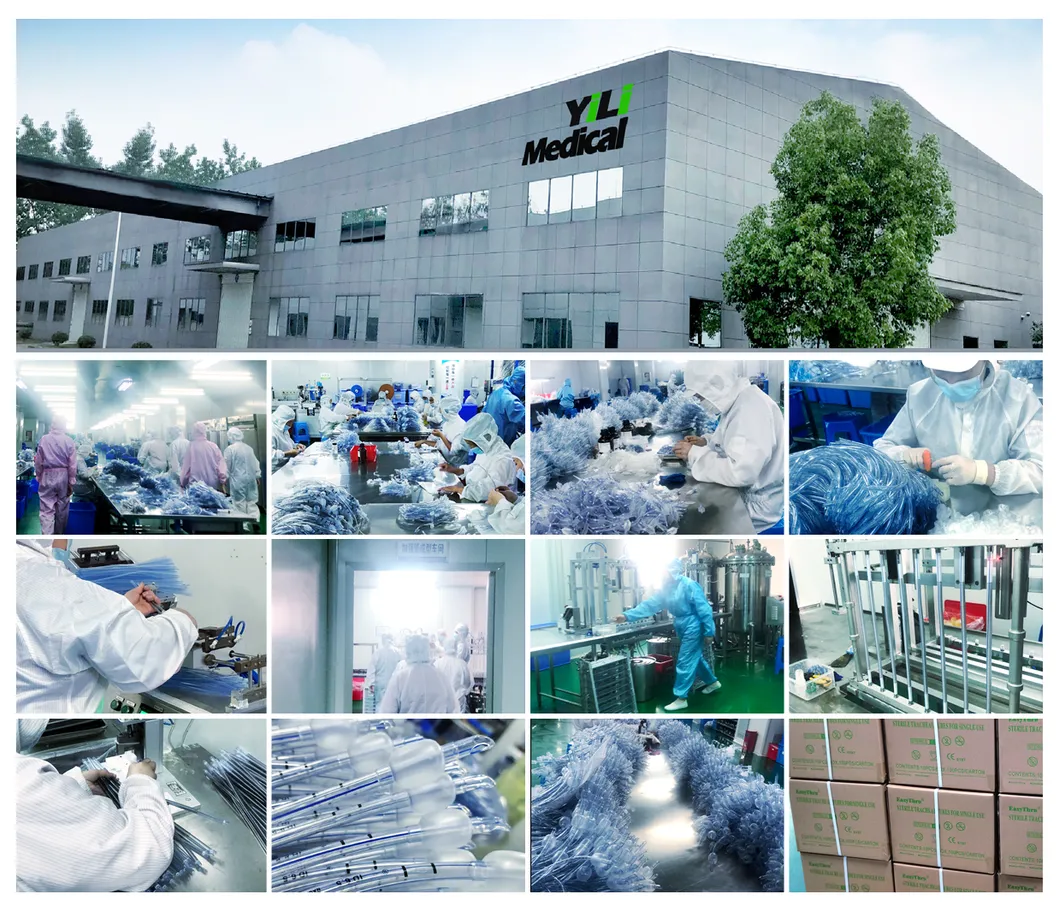

Factory Production
🌐 Exhibition & Logistics
Exhibition Photo 1
Exhibition Photo 2
Packaging Detail
Transportation
📜 Certifications
Medical Certificates
❓ Frequently Asked Questions
Can I have a sample order?
Yes, we welcome sample orders to test and check quality. Mixed samples are acceptable.
What about the lead time?
Samples need 3-5 days; mass production typically requires 2-4 weeks for orders exceeding 10,000 pcs.
Do you have any MOQ limit for this item?
Low MOQ is available; 1pc for sample checking can be provided.
How do you ship the goods and how long does it take to arrive?
We usually ship via DHL, UPS, FedEx, or TNT, taking 3-5 days. Airline and sea shipping are also optional.
How to proceed with an order for medical consumables?
First, let us know your requirements. Second, we quote based on your needs. Third, the customer confirms samples and places a deposit. Fourth, we arrange production.
Is it OK to print my logo on the package?
Yes. Please inform us formally before production and confirm the design based on our sample.
